Печатная плата MSX Zemmix Neo #13

330.00

MSX2+ compatible FPGA system
The Zemmix Neo is a computer originally created by a team in Korea. The system is based on the design of the One Chip MSX, with the addition of a scanline generator.

Connections:

S-Video mini-DINRCA/CINCH, Composite Video connectorRCA/CINCH, Stereo Audio connectors, VGA output, PS/2 keyboard, 2 ports general connectors (joysticks, mouse, paddle controllers, …) 2 cartridge , SD card slot.
2048/4096 KB RAM ,mapperSCC+, soundFM, soundVGA outputRGB, composite and S-Video output, PS/2 keyboard connector, Two turbo speeds (5.37Mhz and 8.06Mhz), SD card slot, Cassette tape input.

Нет в наличии

Категории: ,

Описание

http://optotech.net.br/msx/zemmix_neo/

1 отзыв на Печатная плата MSX Zemmix Neo #13

  1. Williams James

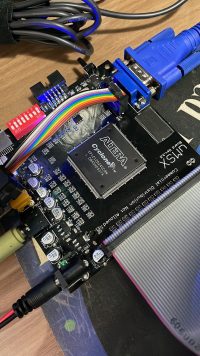

    Works well, have it running and playing games. My only comment on this variant of the PCB is that some of the holes for the connectors need milling out or the connector modified. For example I had to cut off the front grounding pin of the PS/2 and keyboard connectors, mill out slots to fit the power connector (remember to solder the +ve pin top and bottom if you do this) and cut off the plastic tabs from the RCA connector. This doesn’t effect it’s operation though. If you struggle to find the RAM chip I used a Samsung K4S561632E-UL75 that you get on some laptop SODIMs
